Brickslot (slotted tops)
Brickslot is a discreet drainage solution for use with brick or stone pavers up to 63mm deep. The 10mm slot blends in with the paving joints giving an aesthetic solution.
The Brickslot cover is typically used on the KlassikDrain K100 channel, but can also be used on the SlabDrain H100K if depth restrictions are a concern. An access unit provides discreet access to the channel or in-line pit for maintenance.
Brickslot 100
 | Brickslot 100 with 10mm slot. Double Brickslot 100 with two 8mm flared slot openings. |
 | Brick pavers |
 | Use with KlassikDrain K100 and SlabDrain H100K channels. |
Brickslot 200

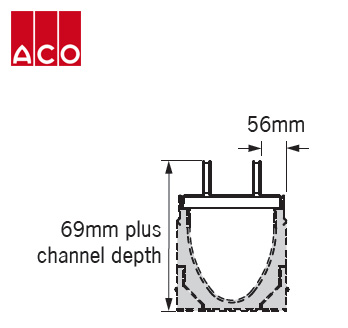

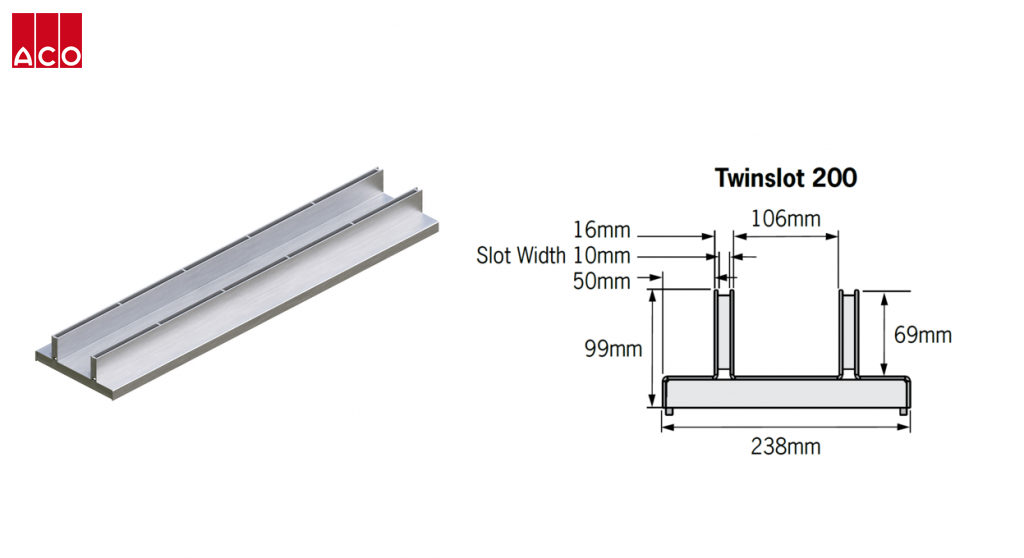

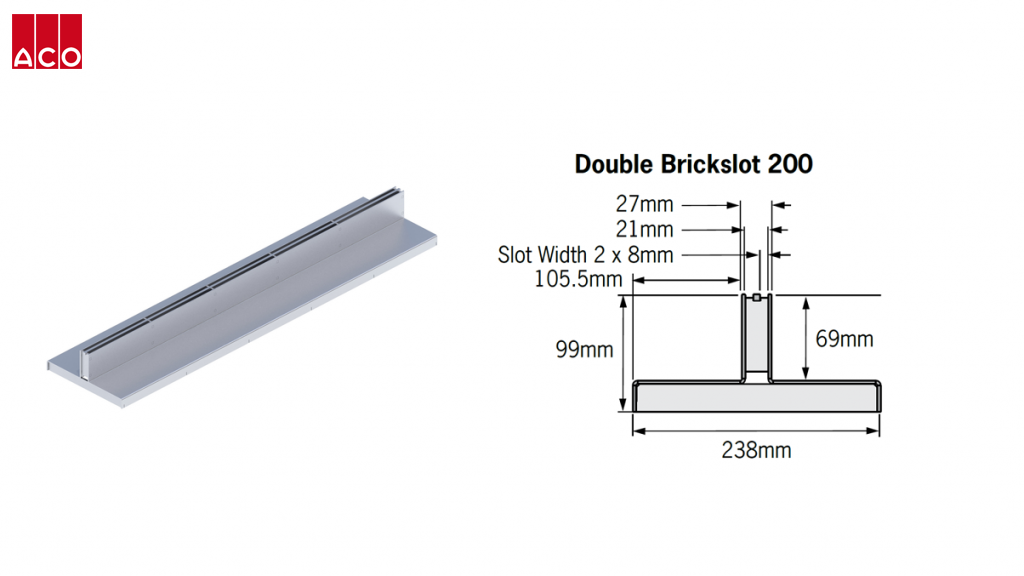

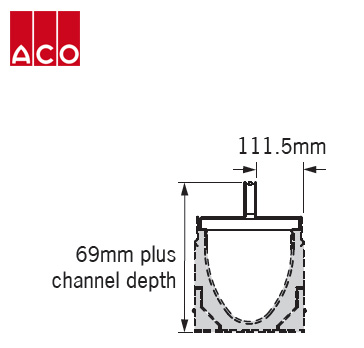

| Twinslot 200 with two parallel 10mm slots. Double Brickslot 200 with two 8mm flared slot openings. |
| Brick pavers |
| Use with KlassikDrain K200 and SlabDrain H200K channels. |
Slotted tops
| Grate Image | Product Name & Dimension | Available widths | Compliance |
|---|---|---|---|
 |
Brickslot 100 | 100mm |    Wheelchair and walking cane compliant when the dominant direction of travel is perpendicular to the slot length. |
 |
|||
 |
Double Brickslot 100 | 100mm | |
|
|
|||
 |
Double Brickslot 200 | 200mm | |
|
|
|||
 |
Twinslot 200 | 200mm | Wheelchair and walking cane compliant when the dominant direction of travel is perpendicular to the slot length. |
|
|
|||
System Layout

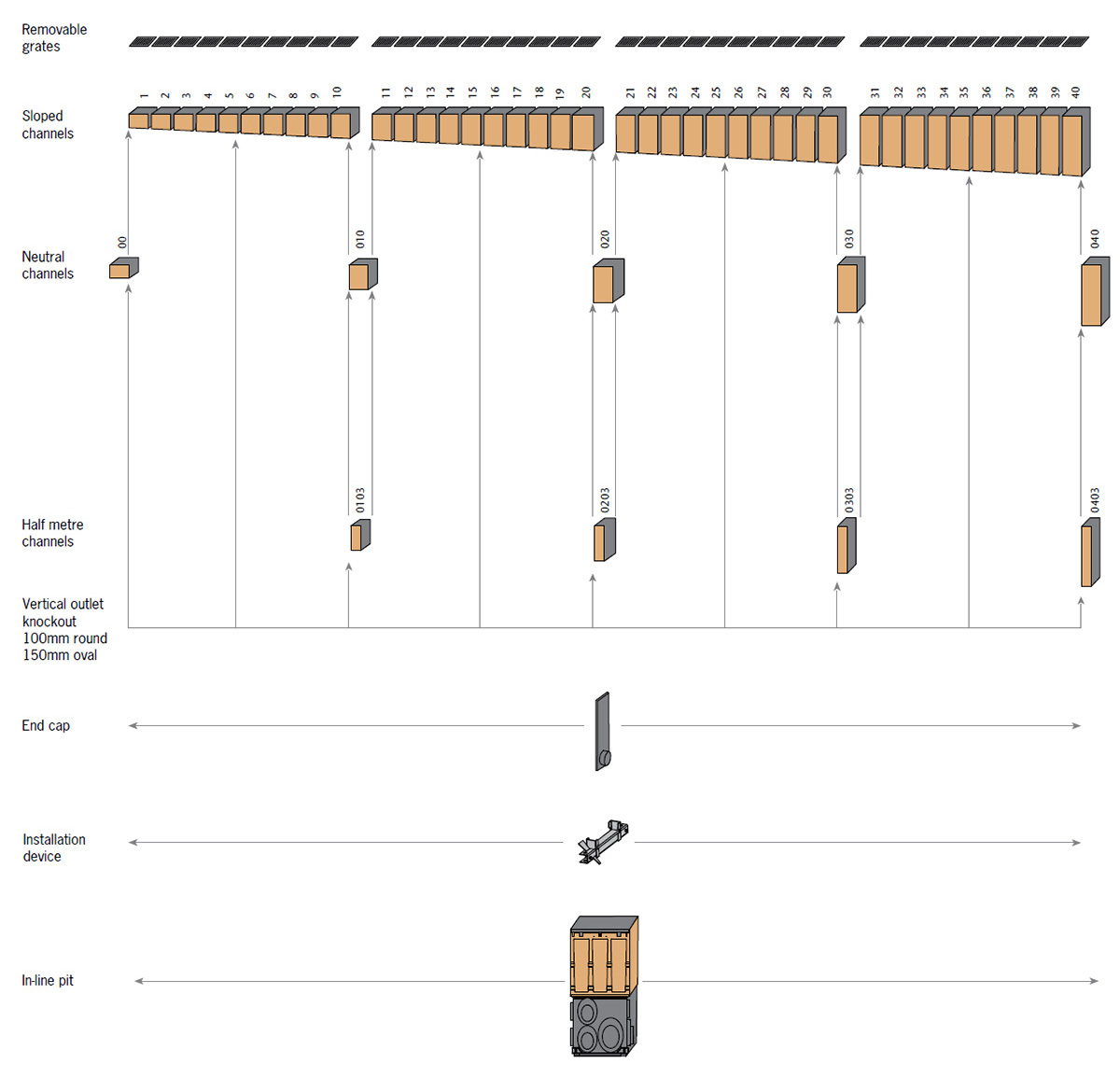

Brickslot System Layout (click to enlarge)

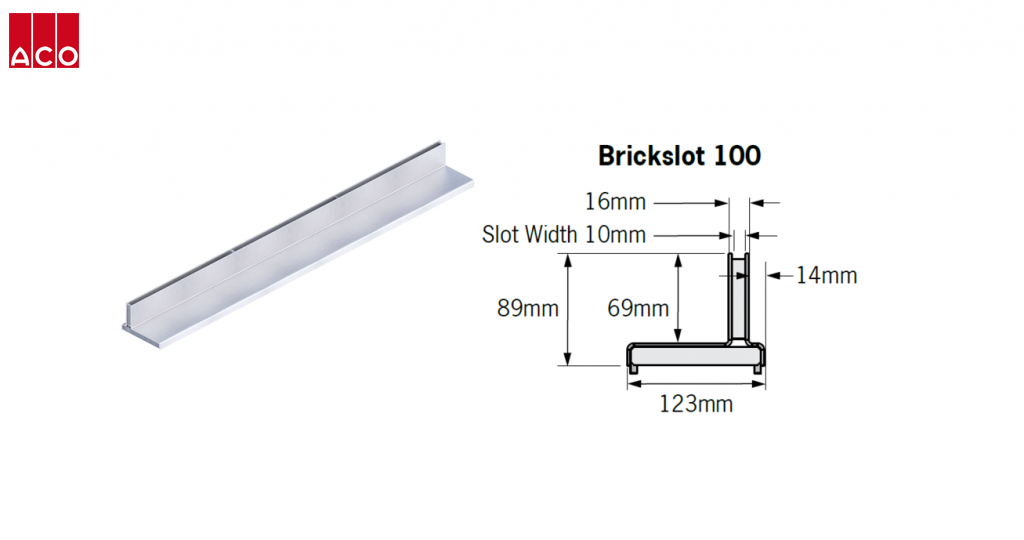

Brickslot 100 (single slot)
Slotted tops
| Brickslot for 100mm channel | Part No. | Invert Depth (mm) |
Weight (kg) |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|
| Approximate wheel load 8,000kg – slow moving vehicles | |||||||
 |
Galvanised Brickslot 100 (1m) | 142790# | Channel invert + 69 | 7.8 |  |
|
|
| Galvanised Brickslot 100 (0.5m) | 142791# | Channel invert + 69 | 3.9 | |
|
|
|
| Galvanised Brickslot 100 access unit (0.5m) | 142466 | Channel invert + 69 | 7.4 | |
|
|
|
| Stainless Brickslot 100 (1m) * | 142792# | Channel invert + 69 | 7.8 | |
|
|
|
| Stainless Brickslot 100 (0.5m) * | 142793# | Channel invert + 69 | 3.9 | |
|
|
|
| Stainless Brickslot 100 access unit (0.5m) * | 142469 | Channel invert + 69 | 7.4 | |
|
|
|

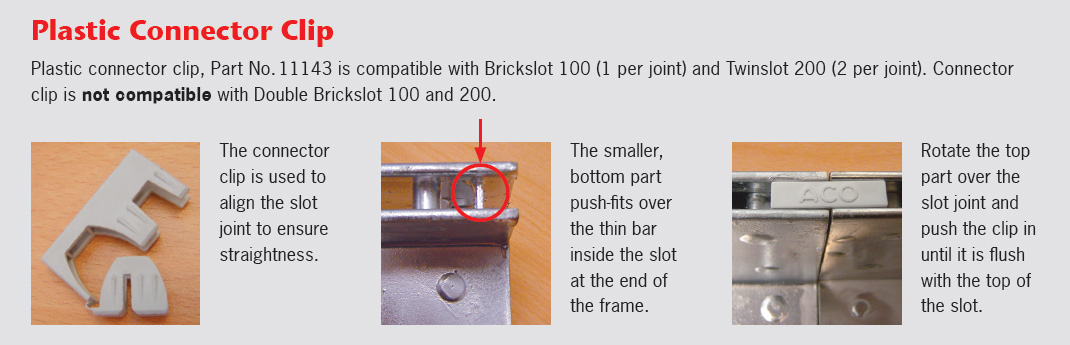

* Grade 304 stainless steel. # One plastic connector clip included. Intake area of 10,000mm2 for 1m length.
Note:
1. Access unit can be used on channels or in-line pit.
2. Only the access cover can be removed once Brickslot has been installed. Two grate removal tools (Part No. 01318) are required.
3. For custom slot widths and heights contact ACO.
Channels & pits
H100K / H100KS (shallow system)
Download H100K/H100KS Spec Info
| Channels | Part No. Galv |
Part No. S/S |
Invert Depth (mm) |
Overall Depth (mm) |
Weight (kg) |
|---|---|---|---|---|---|
| H100K-60 Neutral channel (1m) | 141803 | 141804 | 45 | 60 | 7.6 |
| H100K-80 Neutral channel (1m) | 141785 | 141786 | 65 | 80 | 9.0 |
| H100K-100 Neutral channel (1m) | 141787 | 141788 | 85 | 100 | 12.5 |
K100 / KS100
| Channels | Part No. K100 |
Part No. KS100 |
Invert Depth Female (mm) |
Invert Depth Male (mm) |
Overall Depth Female (mm) |
Overall Depth Male (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| K1-00 Neutral channel - (1m)1 | 144041 | 144441 | 100 | 100 | 120 | 120 | 12.7 |
| K1-1 Sloped channel - (1m) | 144001 | 144401 | 100 | 105 | 120 | 125 | 12.7 |
| K1-2 Sloped channel - (1m) | 144002 | 144402 | 105 | 110 | 125 | 130 | 13.1 |
| K1-3 Sloped channel - (1m) | 144003 | 144403 | 110 | 115 | 130 | 135 | 13.5 |
| K1-4 Sloped channel - (1m) | 144004 | 144404 | 115 | 120 | 135 | 140 | 13.8 |
| K1-5 Sloped channel - (1m)1 | 144005 | 144405 | 120 | 125 | 140 | 145 | 14.2 |
| K1-6 Sloped channel - (1m) | 144006 | 144406 | 125 | 130 | 145 | 150 | 14.6 |
| K1-7 Sloped channel - (1m) | 144007 | 144407 | 130 | 135 | 150 | 155 | 14.9 |
| K1-8 Sloped channel - (1m) | 144008 | 144408 | 135 | 140 | 155 | 160 | 15.3 |
| K1-9 Sloped channel - (1m) | 144009 | 144409 | 140 | 145 | 160 | 165 | 15.6 |
| K1-10 Sloped channel - (1m)1 | 144010 | 144410 | 145 | 150 | 165 | 170 | 16 |
| K1-010 Neutral channel - (1m)1 | 144043 | 144443 | 150 | 150 | 170 | 170 | 16 |
| K1-0103 Neutral channel - (0.5m)1 | 144044 | 144444 | 150 | 150 | 170 | 170 | 7.7 |
| K1-11 Sloped channel - (1m) | 144011 | 144411 | 150 | 155 | 170 | 175 | 16.4 |
| K1-12 Sloped channel - (1m) | 144012 | 144412 | 155 | 160 | 175 | 180 | 16.7 |
| K1-13 Sloped channel - (1m) | 144013 | 144413 | 160 | 165 | 180 | 185 | 17.1 |
| K1-14 Sloped channel - (1m) | 144014 | 144414 | 165 | 170 | 185 | 190 | 17.5 |
| K1-15 Sloped channel - (1m)1 | 144015 | 144415 | 170 | 175 | 190 | 195 | 17.8 |
| K1-16 Sloped channel - (1m) | 144016 | 144416 | 175 | 180 | 195 | 200 | 18.2 |
| K1-17 Sloped channel - (1m) | 144017 | 144417 | 180 | 185 | 200 | 205 | 18.6 |
| K1-18 Sloped channel - (1m) | 144018 | 144418 | 185 | 190 | 205 | 210 | 18.9 |
| K1-19 Sloped channel - (1m) | 144019 | 144419 | 190 | 195 | 210 | 215 | 19.3 |
| K1-20 Sloped channel - (1m)1 | 144020 | 144420 | 195 | 200 | 215 | 220 | 19.7 |
| K1-020 Neutral channel - (1m)1 | 144045 | 144445 | 200 | 200 | 220 | 220 | 19.7 |
| K1-0203 Neutral channel - (0.5m)1 | 144046 | 144446 | 200 | 200 | 220 | 220 | 9.3 |
| K1-21 Sloped channel - (1m) | 144021 | 144421 | 200 | 205 | 220 | 225 | 20 |
| K1-22 Sloped channel - (1m) | 144022 | 144422 | 205 | 210 | 225 | 230 | 20.4 |
| K1-23 Sloped channel - (1m) | 144023 | 144423 | 210 | 215 | 230 | 235 | 20.8 |
| K1-24 Sloped channel - (1m) | 144024 | 144424 | 215 | 220 | 235 | 240 | 21.1 |
| K1-25 Sloped channel - (1m)1 | 144025 | 144425 | 220 | 225 | 240 | 245 | 21.5 |
| K1-26 Sloped channel - (1m) | 144026 | 144426 | 225 | 230 | 245 | 250 | 21.9 |
| K1-27 Sloped channel - (1m) | 144027 | 144427 | 230 | 235 | 250 | 255 | 22.2 |
| K1-28 Sloped channel - (1m) | 144028 | 144428 | 235 | 240 | 255 | 260 | 22.6 |
| K1-29 Sloped channel - (1m) | 144029 | 144429 | 240 | 245 | 260 | 265 | 23 |
| K1-30 Sloped channel - (1m)1 | 144030 | 144430 | 245 | 250 | 265 | 270 | 23.3 |
| K1-030 Neutral channel - (1m)1 | 144047 | 144447 | 250 | 250 | 270 | 270 | 23.3 |
| K1-0303 Neutral channel - (0.5m)1 | 144048 | 144448 | 250 | 250 | 270 | 270 | 10.9 |
| K1-31 Sloped channel - (1m) | 144031 | 144431 | 250 | 255 | 270 | 275 | 23.7 |
| K1-32 Sloped channel - (1m) | 144032 | 144432 | 255 | 260 | 275 | 280 | 24 |
| K1-33 Sloped channel - (1m) | 144033 | 144433 | 260 | 265 | 280 | 285 | 24.4 |
| K1-34 Sloped channel - (1m) | 144034 | 144434 | 265 | 270 | 285 | 290 | 24.8 |
| K1-35 Sloped channel - (1m)1 | 144035 | 144435 | 270 | 275 | 290 | 295 | 25.1 |
| K1-36 Sloped channel - (1m) | 144036 | 144436 | 275 | 280 | 295 | 300 | 25.5 |
| K1-37 Sloped channel - (1m) | 144037 | 144437 | 280 | 285 | 300 | 305 | 25.9 |
| K1-38 Sloped channel - (1m) | 144038 | 144438 | 285 | 290 | 305 | 310 | 26.3 |
| K1-39 Sloped channel - (1m) | 144039 | 144439 | 290 | 295 | 310 | 315 | 26.6 |
| K1-40 Sloped channel - (1m)1 | 144040 | 144440 | 295 | 300 | 315 | 320 | 27 |
| K1-040 Neutral channel - (1m)1 | 144049 | 144449 | 300 | 300 | 320 | 320 | 27 |
| K1-0403 Neutral channel - (0.5m)1 | 144050 | 144450 | 300 | 300 | 320 | 320 | 12.5 |
| K1-900 In-line pit (0.5m) | 142838 | 142839 | 565 | 565 | 585 | 585 | 29.5 |
| K1-901 In-line pit (0.5m) | 141817 | 141818 | - | - | 723 | 723 | 23.9 |
| Type 901 In-line plastic rubbish basket | 01498 | 01498 | - | - | - | - | 0.5 |
Accessories
| Accessories | Part No. | Overall Depth (mm) |
Weight (kg) |
JPG |
|---|---|---|---|---|
| End cap for H100K-60/H100KS-60 channels | 141805 | 60 | 0.1 | - |
| End cap for H100K-80/H100KS-80 channels | 141793 | 79 | 0.5 | - |
| End cap for H100K-100/H100KS-100 channels | 141794 | 100 | 0.6 | - |
| End cap for K100/KS100 channels | 96822 | 315 | 0.2 |  |
| Debris strainer for 100mm knockout | 93488 | - | 0.1 |  |
| Installation device for K100/KS100 channels | 97477 | - | 0.3 | - |
| Grate removal tool | 01318 | - | 0.1 | - |
Installation files
| System | Nominal wheel load |
Pavers pavers to edge |
Concrete haunch to top |
||
|---|---|---|---|---|---|
| K100 (Gal rail) | 2,670kg |  |
 |
|
|
| K100 (Gal rail) | 8,000kg | |
|
|
|
| KS100 (S/S rail) | 2,670kg | |
|
|
|
| KS100 (S/S rail) | 8,000kg | |
|
|
|
| H100K (Gal rail) | 2,670kg | |
|
|
|
| H100K (Gal rail) | 8,000kg | |
|
|
|
| H100KS (S/S rail) | 2,670kg | |
|
|
|
| H100KS (S/S rail) | 8,000kg | |
|
|
|

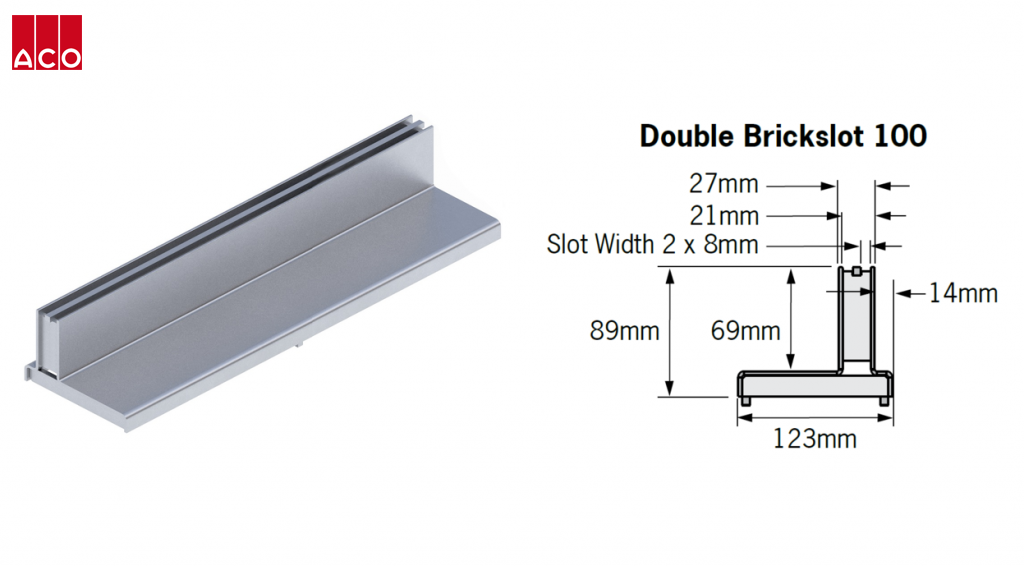

Double Brickslot 100 (2 adjacent slots)
Slotted tops
| Brickslot for 100mm channel | Part No. | Invert Depth (mm) |
Weight (kg) |
|
|
|
|
|---|---|---|---|---|---|---|---|
| Approximate wheel load 8,000kg – slow moving vehicles | |||||||
 |
Galvanised Double Brickslot 100 (1m) | 142470 | Channel invert + 69 | 8.2 | |
|
|
| Galvanised Double Brickslot 100 (0.5m) | 142471 | Channel invert + 69 | 4.1 | |
|
|
|
| Galvanised Double Brickslot 100 access unit (0.5m) | 142472 | Channel invert + 69 | 7.7 | |
|
|
|
| Stainless Double Brickslot 100 (1m) * | 142473 | Channel invert + 69 | 8.2 | |
|
|
|
| Stainless Double Brickslot 100 (0.5m) * | 142474 | Channel invert + 69 | 4.1 | |
|
|
|
| Stainless Double Brickslot 100 access unit (0.5m) * | 142475 | Channel invert + 69 | 7.7 | |
|
|
|
* Grade 304 stainless steel. Intake area of 16,000mm2 for 1m length.
Note:
1. Access unit can be used on channels or in-line pit.
2. Only the access cover can be removed once Brickslot has been installed. Two grate removal tools (Part No. 01318) are required.
3. For custom slot widths and heights contact ACO.
Channels & pits
H100K / H100KS (shallow system)
Download H100K/H100KS Spec Info
| Channels | Part No. Galv |
Part No. S/S |
Invert Depth (mm) |
Overall Depth (mm) |
Weight (kg) |
|---|---|---|---|---|---|
| H100K-60 Neutral channel (1m) | 141803 | 141804 | 45 | 60 | 7.6 |
| H100K-80 Neutral channel (1m) | 141785 | 141786 | 65 | 80 | 9.0 |
| H100K-100 Neutral channel (1m) | 141787 | 141788 | 85 | 100 | 12.5 |
K100 / KS100
| Channels | Part No. K100 |
Part No. KS100 |
Invert Depth Female (mm) |
Invert Depth Male (mm) |
Overall Depth Female (mm) |
Overall Depth Male (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| K1-00 Neutral channel - (1m)1 | 144041 | 144441 | 100 | 100 | 120 | 120 | 12.7 |
| K1-1 Sloped channel - (1m) | 144001 | 144401 | 100 | 105 | 120 | 125 | 12.7 |
| K1-2 Sloped channel - (1m) | 144002 | 144402 | 105 | 110 | 125 | 130 | 13.1 |
| K1-3 Sloped channel - (1m) | 144003 | 144403 | 110 | 115 | 130 | 135 | 13.5 |
| K1-4 Sloped channel - (1m) | 144004 | 144404 | 115 | 120 | 135 | 140 | 13.8 |
| K1-5 Sloped channel - (1m)1 | 144005 | 144405 | 120 | 125 | 140 | 145 | 14.2 |
| K1-6 Sloped channel - (1m) | 144006 | 144406 | 125 | 130 | 145 | 150 | 14.6 |
| K1-7 Sloped channel - (1m) | 144007 | 144407 | 130 | 135 | 150 | 155 | 14.9 |
| K1-8 Sloped channel - (1m) | 144008 | 144408 | 135 | 140 | 155 | 160 | 15.3 |
| K1-9 Sloped channel - (1m) | 144009 | 144409 | 140 | 145 | 160 | 165 | 15.6 |
| K1-10 Sloped channel - (1m)1 | 144010 | 144410 | 145 | 150 | 165 | 170 | 16 |
| K1-010 Neutral channel - (1m)1 | 144043 | 144443 | 150 | 150 | 170 | 170 | 16 |
| K1-0103 Neutral channel - (0.5m)1 | 144044 | 144444 | 150 | 150 | 170 | 170 | 7.7 |
| K1-11 Sloped channel - (1m) | 144011 | 144411 | 150 | 155 | 170 | 175 | 16.4 |
| K1-12 Sloped channel - (1m) | 144012 | 144412 | 155 | 160 | 175 | 180 | 16.7 |
| K1-13 Sloped channel - (1m) | 144013 | 144413 | 160 | 165 | 180 | 185 | 17.1 |
| K1-14 Sloped channel - (1m) | 144014 | 144414 | 165 | 170 | 185 | 190 | 17.5 |
| K1-15 Sloped channel - (1m)1 | 144015 | 144415 | 170 | 175 | 190 | 195 | 17.8 |
| K1-16 Sloped channel - (1m) | 144016 | 144416 | 175 | 180 | 195 | 200 | 18.2 |
| K1-17 Sloped channel - (1m) | 144017 | 144417 | 180 | 185 | 200 | 205 | 18.6 |
| K1-18 Sloped channel - (1m) | 144018 | 144418 | 185 | 190 | 205 | 210 | 18.9 |
| K1-19 Sloped channel - (1m) | 144019 | 144419 | 190 | 195 | 210 | 215 | 19.3 |
| K1-20 Sloped channel - (1m)1 | 144020 | 144420 | 195 | 200 | 215 | 220 | 19.7 |
| K1-020 Neutral channel - (1m)1 | 144045 | 144445 | 200 | 200 | 220 | 220 | 19.7 |
| K1-0203 Neutral channel - (0.5m)1 | 144046 | 144446 | 200 | 200 | 220 | 220 | 9.3 |
| K1-21 Sloped channel - (1m) | 144021 | 144421 | 200 | 205 | 220 | 225 | 20 |
| K1-22 Sloped channel - (1m) | 144022 | 144422 | 205 | 210 | 225 | 230 | 20.4 |
| K1-23 Sloped channel - (1m) | 144023 | 144423 | 210 | 215 | 230 | 235 | 20.8 |
| K1-24 Sloped channel - (1m) | 144024 | 144424 | 215 | 220 | 235 | 240 | 21.1 |
| K1-25 Sloped channel - (1m)1 | 144025 | 144425 | 220 | 225 | 240 | 245 | 21.5 |
| K1-26 Sloped channel - (1m) | 144026 | 144426 | 225 | 230 | 245 | 250 | 21.9 |
| K1-27 Sloped channel - (1m) | 144027 | 144427 | 230 | 235 | 250 | 255 | 22.2 |
| K1-28 Sloped channel - (1m) | 144028 | 144428 | 235 | 240 | 255 | 260 | 22.6 |
| K1-29 Sloped channel - (1m) | 144029 | 144429 | 240 | 245 | 260 | 265 | 23 |
| K1-30 Sloped channel - (1m)1 | 144030 | 144430 | 245 | 250 | 265 | 270 | 23.3 |
| K1-030 Neutral channel - (1m)1 | 144047 | 144447 | 250 | 250 | 270 | 270 | 23.3 |
| K1-0303 Neutral channel - (0.5m)1 | 144048 | 144448 | 250 | 250 | 270 | 270 | 10.9 |
| K1-31 Sloped channel - (1m) | 144031 | 144431 | 250 | 255 | 270 | 275 | 23.7 |
| K1-32 Sloped channel - (1m) | 144032 | 144432 | 255 | 260 | 275 | 280 | 24 |
| K1-33 Sloped channel - (1m) | 144033 | 144433 | 260 | 265 | 280 | 285 | 24.4 |
| K1-34 Sloped channel - (1m) | 144034 | 144434 | 265 | 270 | 285 | 290 | 24.8 |
| K1-35 Sloped channel - (1m)1 | 144035 | 144435 | 270 | 275 | 290 | 295 | 25.1 |
| K1-36 Sloped channel - (1m) | 144036 | 144436 | 275 | 280 | 295 | 300 | 25.5 |
| K1-37 Sloped channel - (1m) | 144037 | 144437 | 280 | 285 | 300 | 305 | 25.9 |
| K1-38 Sloped channel - (1m) | 144038 | 144438 | 285 | 290 | 305 | 310 | 26.3 |
| K1-39 Sloped channel - (1m) | 144039 | 144439 | 290 | 295 | 310 | 315 | 26.6 |
| K1-40 Sloped channel - (1m)1 | 144040 | 144440 | 295 | 300 | 315 | 320 | 27 |
| K1-040 Neutral channel - (1m)1 | 144049 | 144449 | 300 | 300 | 320 | 320 | 27 |
| K1-0403 Neutral channel - (0.5m)1 | 144050 | 144450 | 300 | 300 | 320 | 320 | 12.5 |
| K1-900 In-line pit (0.5m) | 142838 | 142839 | 565 | 565 | 585 | 585 | 29.5 |
| K1-901 In-line pit (0.5m) | 141817 | 141818 | - | - | 723 | 723 | 23.9 |
| Type 901 In-line plastic rubbish basket | 01498 | 01498 | - | - | - | - | 0.5 |
Accessories
| Accessories | Part No. | Overall Depth (mm) |
Weight (kg) |
JPG |
|---|---|---|---|---|
| End cap for H100K-60/H100KS-60 channels | 141805 | 60 | 0.1 | - |
| End cap for H100K-80/H100KS-80 channels | 141793 | 79 | 0.5 | - |
| End cap for H100K-100/H100KS-100 channels | 141794 | 100 | 0.6 | - |
| End cap for K100/KS100 channels | 96822 | 315 | 0.2 | |
| Debris strainer for 100mm knockout | 93488 | - | 0.1 | |
| Installation device for K100/KS100 channels | 97477 | - | 0.3 | - |
| Grate removal tool | 01318 | - | 0.1 | - |
Installation files
| System | Nominal wheel load |
Pavers pavers to edge |
Concrete haunch to top |
||
|---|---|---|---|---|---|
| K100 (Gal rail) | 2,670kg | |
|
|
|
| K100 (Gal rail) | 8,000kg | |
|
|
|
| KS100 (S/S rail) | 2,670kg | |
|
|
|
| KS100 (S/S rail) | 8,000kg | |
|
|
|
| H100K (Gal rail) | 2,670kg | |
|
|
|
| H100K (Gal rail) | 8,000kg | |
|
|
|
| H100KS (S/S rail) | 2,670kg | |
|
|
|
| H100KS (S/S rail) | 8,000kg | |
|
|
|
Double Brickslot 200 (2 adjacent slots)
Slotted tops
| Brickslot for 200mm channel | Part No. | Invert Depth (mm) |
Weight (kg) |
|
|
|
|
|---|---|---|---|---|---|---|---|
| Approximate wheel load 8,000kg – slow moving vehicles | |||||||
 |
Galvanised Double Brickslot 200 (1m) | 142482 | Channel invert + 69 | 12.7 | |
|
|
| Galvanised Double Brickslot 200 (0.5m) | 142483 | Channel invert + 69 | 6.6 | |
|
|
|
| Galvanised Double Brickslot 200 access unit (0.5m) | 142484 | Channel invert + 69 | 13.2 | |
|
|
|
| Stainless Double Brickslot 200 (1m)* | 142485 | Channel invert + 69 | 12.7 | |
|
|
|
| Stainless Double Brickslot 200 (0.5m) * | 142486 | Channel invert + 69 | 6.6 | |
|
|
|
| Stainless Double Brickslot 200 access unit (0.5m) * | 142487 | Channel invert + 69 | 13.2 | |
|
|
|
* Grade 304 stainless steel. Intake area of 16,000mm 2 for 1m length.
Note:
1. Access unit can be used on channels or in-line pit.
2. Only the access cover can be removed once Brickslot has been installed. Two grate removal tools (Part No. 01318) are required.
3. For custom slot widths and heights contact ACO.
Channels & pits
H200K / H200KS (shallow system)
Download H200K/H200KS Spec Info
| Channels | Part No. Galv |
Part No. S/S |
Invert Depth (mm) |
Overall Depth (mm) |
Weight (kg) |
|---|---|---|---|---|---|
| H200K Neutral channel (1m) | 141789 | 141790 | 100 | 130 | 27.2 |
K200 / KS200
| Channels | Part No. K200 |
Part No. KS200 |
Invert Depth Female (mm) |
Invert Depth Male (mm) |
Overall Depth Female (mm) |
Overall Depth Male (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| K2-00 Neutral channel - (1m)1 | 145041 | 145441 | 200 | 200 | 225 | 225 | 37.9 |
| K2-1 Sloped channel - (1m) | 145001 | 145401 | 200 | 205 | 225 | 230 | 37.9 |
| K2-2 Sloped channel - (1m) | 145002 | 145402 | 205 | 210 | 230 | 235 | 38.4 |
| K2-3 Sloped channel - (1m) | 145003 | 145403 | 210 | 215 | 235 | 240 | 38.9 |
| K2-4 Sloped channel - (1m) | 145004 | 145404 | 215 | 220 | 240 | 245 | 39.4 |
| K2-5 Sloped channel - (1m)1 | 145005 | 145405 | 220 | 225 | 245 | 250 | 39.9 |
| K2-6 Sloped channel - (1m) | 145006 | 145406 | 225 | 230 | 250 | 255 | 40.4 |
| K2-7 Sloped channel - (1m) | 145007 | 145407 | 230 | 235 | 255 | 260 | 40.9 |
| K2-8 Sloped channel - (1m) | 145008 | 145408 | 235 | 240 | 260 | 265 | 41.4 |
| K2-9 Sloped channel - (1m) | 145009 | 145409 | 240 | 245 | 265 | 270 | 41.9 |
| K2-10 Sloped channel - (1m)1 | 145010 | 145410 | 245 | 250 | 270 | 275 | 42.4 |
| K2-010 Neutral channel - (1m)1 | 145043 | 145443 | 250 | 250 | 275 | 275 | 42.4 |
| K2-0103 Neutral channel - (0.5m)1 | 145044 | 145444 | 250 | 250 | 275 | 275 | 25.4 |
| K2-11 Sloped channel - (1m) | 145011 | 145411 | 250 | 255 | 275 | 280 | 42.9 |
| K2-12 Sloped channel - (1m) | 145012 | 145412 | 255 | 260 | 280 | 285 | 43.4 |
| K2-13 Sloped channel - (1m) | 145013 | 145413 | 260 | 265 | 285 | 290 | 43.9 |
| K2-14 Sloped channel - (1m) | 145014 | 145414 | 265 | 270 | 290 | 295 | 44.4 |
| K2-15 Sloped channel - (1m)1 | 145015 | 145415 | 270 | 275 | 295 | 300 | 44.9 |
| K2-16 Sloped channel - (1m) | 145016 | 145416 | 275 | 280 | 300 | 305 | 45.4 |
| K2-17 Sloped channel - (1m) | 145017 | 145417 | 280 | 285 | 305 | 310 | 45.9 |
| K2-18 Sloped channel - (1m) | 145018 | 145418 | 285 | 290 | 310 | 315 | 46.4 |
| K2-19 Sloped channel - (1m) | 145019 | 145419 | 290 | 295 | 315 | 320 | 46.9 |
| K2-20 Sloped channel - (1m)1 | 145020 | 145420 | 295 | 300 | 320 | 325 | 47.4 |
| K2-020 Neutral channel - (1m)1 | 145045 | 145445 | 300 | 300 | 325 | 325 | 47.4 |
| K2-0203 Neutral channel - (0.5m)1 | 145046 | 145446 | 300 | 300 | 325 | 325 | 29.0 |
| K2-21 Sloped channel - (1m) | 145021 | 145421 | 300 | 305 | 325 | 330 | 47.9 |
| K2-22 Sloped channel - (1m) | 145022 | 145422 | 305 | 310 | 330 | 335 | 48.4 |
| K2-23 Sloped channel - (1m) | 145023 | 145423 | 310 | 315 | 335 | 340 | 48.9 |
| K2-24 Sloped channel - (1m) | 145024 | 145424 | 315 | 320 | 340 | 345 | 49.4 |
| K2-25 Sloped channel - (1m)1 | 145025 | 145425 | 320 | 325 | 345 | 350 | 49.9 |
| K2-26 Sloped channel - (1m) | 145026 | 145426 | 325 | 330 | 350 | 355 | 50.4 |
| K2-27 Sloped channel - (1m) | 145027 | 145427 | 330 | 335 | 355 | 360 | 50.9 |
| K2-28 Sloped channel - (1m) | 145028 | 145428 | 335 | 340 | 360 | 365 | 51.4 |
| K2-29 Sloped channel - (1m) | 145029 | 145429 | 340 | 345 | 365 | 370 | 51.9 |
| K2-30 Sloped channel - (1m)1 | 145030 | 145430 | 345 | 350 | 370 | 375 | 52.4 |
| K2-030 Neutral channel - (1m)1 | 145047 | 145447 | 350 | 350 | 375 | 375 | 52.4 |
| K2-0303 Neutral channel - (0.5m)1 | 145048 | 145448 | 350 | 350 | 375 | 375 | 30.8 |
| K2-31 Sloped channel - (1m) | 145031 | 145431 | 350 | 355 | 375 | 380 | 52.9 |
| K2-32 Sloped channel - (1m) | 145032 | 145432 | 355 | 360 | 380 | 385 | 53.4 |
| K2-33 Sloped channel - (1m) | 145033 | 145433 | 360 | 365 | 385 | 390 | 53.9 |
| K2-34 Sloped channel - (1m) | 145034 | 145434 | 365 | 370 | 390 | 395 | 54.4 |
| K2-35 Sloped channel - (1m)1 | 145035 | 145435 | 370 | 375 | 395 | 400 | 54.9 |
| K2-36 Sloped channel - (1m) | 145036 | 145436 | 375 | 380 | 400 | 405 | 55.4 |
| K2-37 Sloped channel - (1m) | 145037 | 145437 | 380 | 385 | 405 | 410 | 55.9 |
| K2-38 Sloped channel - (1m) | 145038 | 145438 | 385 | 390 | 410 | 415 | 56.4 |
| K2-39 Sloped channel - (1m) | 145039 | 145439 | 390 | 395 | 415 | 420 | 56.9 |
| K2-40 Sloped channel - (1m)1 | 145040 | 145440 | 395 | 400 | 420 | 425 | 57.4 |
| K2-040 Neutral channel - (1m)1 | 145049 | 145449 | 400 | 400 | 425 | 425 | 57.4 |
| K2-0403 Neutral channel - (0.5m)1 | 145050 | 145450 | 400 | 400 | 425 | 425 | 34.9 |
| K2-902 In-line pit (0.5m) | 141819 | 141820 | - | - | 843 | 843 | 30.8 |
| Type 902 In-line plastic rubbish basket | 13999 | 13999 | - | - | - | - | 0.5 |
Accessories
| Accessories | Part No. | Overall Depth (mm) |
Weight (kg) |
JPG |
|---|---|---|---|---|
| End cap for H200K/H200KS channels | 141795 | 130 | 0.4 | - |
| End cap for K200/KS200 channels | 96821 | 420 | 0.6 |  |
| Debris strainer for 100mm knockout | 93488 | - | 0.1 | |
| Installation device for K200/KS200 channels | 97478 | - | 1.8 | - |
| Grate removal tool | 01318 | - | 0.1 | - |
Installation files
| System | Nominal wheel load |
Pavers pavers to edge |
Concrete haunch to top |
||
|---|---|---|---|---|---|
| K200 (Gal rail) | 2,670kg | |
|
|
|
| K200 (Gal rail) | 8,000kg | |
|
|
|
| KS200 (S/S rail) | 2,670kg | |
|
|
|
| KS200 (S/S rail) | 8,000kg | |
|
|
|
| H200K (Gal rail) | 2,670kg | |
|
|
|
| H200K (Gal rail) | 8,000kg | |
|
|
|
| H200KS (S/S rail) | 2,670kg | |
|
|
|
| H200KS (S/S rail) | 8,000kg | |
|
|
|
Twinslot 200 (2 separated slots)
Slotted tops
| Brickslot for 200mm channel | Part No. | Invert Depth (mm) |
Weight (kg) |
|
|
|
|
|---|---|---|---|---|---|---|---|
| Approximate wheel load 8,000kg – slow moving vehicles | |||||||
 |
Galvanised Twinslot 200 (1m) | 142794# | Channel invert + 69 | 15.9 | |
|
|
| Galvanised Twinslot 200 (0.5m) | 142795# | Channel invert + 69 | 8.3 | |
|
|
|
| Galvanised Twinslot 200 access unit (0.5m) | 142478 | Channel invert + 69 | 14.7 | |
|
|
|
| Stainless Twinslot 200 (1m) * | 142796# | Channel invert + 69 | 15.9 | |
|
|
|
| Stainless Twinslot 200 (0.5m) * | 142797# | Channel invert + 69 | 8.3 | |
|
|
|
| Stainless Twinslot 200 access unit (0.5m) * | 142481 | Channel invert + 69 | 14.7 | |
|
|
|
* Grade 304 stainless steel. # Two plastic connector clip included. Intake area of 20,000mm2 for 1m length.
Note:
1. Access unit can be used on channels or in-line pit.
2. Only the access cover can be removed once Brickslot has been installed. Two grate removal tools (Part No. 01318) are required.
3. For custom slot widths and heights contact ACO.
Channels & pits
H200K / H200KS (shallow system)
Download H200K/H200KS Spec Info
| Channels | Part No. Galv |
Part No. S/S |
Invert Depth (mm) |
Overall Depth (mm) |
Weight (kg) |
|---|---|---|---|---|---|
| H200K Neutral channel (1m) | 141789 | 141790 | 100 | 130 | 27.2 |
K200 / KS200
| Channels | Part No. K200 |
Part No. KS200 |
Invert Depth Female (mm) |
Invert Depth Male (mm) |
Overall Depth Female (mm) |
Overall Depth Male (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| K2-00 Neutral channel - (1m)1 | 145041 | 145441 | 200 | 200 | 225 | 225 | 37.9 |
| K2-1 Sloped channel - (1m) | 145001 | 145401 | 200 | 205 | 225 | 230 | 37.9 |
| K2-2 Sloped channel - (1m) | 145002 | 145402 | 205 | 210 | 230 | 235 | 38.4 |
| K2-3 Sloped channel - (1m) | 145003 | 145403 | 210 | 215 | 235 | 240 | 38.9 |
| K2-4 Sloped channel - (1m) | 145004 | 145404 | 215 | 220 | 240 | 245 | 39.4 |
| K2-5 Sloped channel - (1m)1 | 145005 | 145405 | 220 | 225 | 245 | 250 | 39.9 |
| K2-6 Sloped channel - (1m) | 145006 | 145406 | 225 | 230 | 250 | 255 | 40.4 |
| K2-7 Sloped channel - (1m) | 145007 | 145407 | 230 | 235 | 255 | 260 | 40.9 |
| K2-8 Sloped channel - (1m) | 145008 | 145408 | 235 | 240 | 260 | 265 | 41.4 |
| K2-9 Sloped channel - (1m) | 145009 | 145409 | 240 | 245 | 265 | 270 | 41.9 |
| K2-10 Sloped channel - (1m)1 | 145010 | 145410 | 245 | 250 | 270 | 275 | 42.4 |
| K2-010 Neutral channel - (1m)1 | 145043 | 145443 | 250 | 250 | 275 | 275 | 42.4 |
| K2-0103 Neutral channel - (0.5m)1 | 145044 | 145444 | 250 | 250 | 275 | 275 | 25.4 |
| K2-11 Sloped channel - (1m) | 145011 | 145411 | 250 | 255 | 275 | 280 | 42.9 |
| K2-12 Sloped channel - (1m) | 145012 | 145412 | 255 | 260 | 280 | 285 | 43.4 |
| K2-13 Sloped channel - (1m) | 145013 | 145413 | 260 | 265 | 285 | 290 | 43.9 |
| K2-14 Sloped channel - (1m) | 145014 | 145414 | 265 | 270 | 290 | 295 | 44.4 |
| K2-15 Sloped channel - (1m)1 | 145015 | 145415 | 270 | 275 | 295 | 300 | 44.9 |
| K2-16 Sloped channel - (1m) | 145016 | 145416 | 275 | 280 | 300 | 305 | 45.4 |
| K2-17 Sloped channel - (1m) | 145017 | 145417 | 280 | 285 | 305 | 310 | 45.9 |
| K2-18 Sloped channel - (1m) | 145018 | 145418 | 285 | 290 | 310 | 315 | 46.4 |
| K2-19 Sloped channel - (1m) | 145019 | 145419 | 290 | 295 | 315 | 320 | 46.9 |
| K2-20 Sloped channel - (1m)1 | 145020 | 145420 | 295 | 300 | 320 | 325 | 47.4 |
| K2-020 Neutral channel - (1m)1 | 145045 | 145445 | 300 | 300 | 325 | 325 | 47.4 |
| K2-0203 Neutral channel - (0.5m)1 | 145046 | 145446 | 300 | 300 | 325 | 325 | 29.0 |
| K2-21 Sloped channel - (1m) | 145021 | 145421 | 300 | 305 | 325 | 330 | 47.9 |
| K2-22 Sloped channel - (1m) | 145022 | 145422 | 305 | 310 | 330 | 335 | 48.4 |
| K2-23 Sloped channel - (1m) | 145023 | 145423 | 310 | 315 | 335 | 340 | 48.9 |
| K2-24 Sloped channel - (1m) | 145024 | 145424 | 315 | 320 | 340 | 345 | 49.4 |
| K2-25 Sloped channel - (1m)1 | 145025 | 145425 | 320 | 325 | 345 | 350 | 49.9 |
| K2-26 Sloped channel - (1m) | 145026 | 145426 | 325 | 330 | 350 | 355 | 50.4 |
| K2-27 Sloped channel - (1m) | 145027 | 145427 | 330 | 335 | 355 | 360 | 50.9 |
| K2-28 Sloped channel - (1m) | 145028 | 145428 | 335 | 340 | 360 | 365 | 51.4 |
| K2-29 Sloped channel - (1m) | 145029 | 145429 | 340 | 345 | 365 | 370 | 51.9 |
| K2-30 Sloped channel - (1m)1 | 145030 | 145430 | 345 | 350 | 370 | 375 | 52.4 |
| K2-030 Neutral channel - (1m)1 | 145047 | 145447 | 350 | 350 | 375 | 375 | 52.4 |
| K2-0303 Neutral channel - (0.5m)1 | 145048 | 145448 | 350 | 350 | 375 | 375 | 30.8 |
| K2-31 Sloped channel - (1m) | 145031 | 145431 | 350 | 355 | 375 | 380 | 52.9 |
| K2-32 Sloped channel - (1m) | 145032 | 145432 | 355 | 360 | 380 | 385 | 53.4 |
| K2-33 Sloped channel - (1m) | 145033 | 145433 | 360 | 365 | 385 | 390 | 53.9 |
| K2-34 Sloped channel - (1m) | 145034 | 145434 | 365 | 370 | 390 | 395 | 54.4 |
| K2-35 Sloped channel - (1m)1 | 145035 | 145435 | 370 | 375 | 395 | 400 | 54.9 |
| K2-36 Sloped channel - (1m) | 145036 | 145436 | 375 | 380 | 400 | 405 | 55.4 |
| K2-37 Sloped channel - (1m) | 145037 | 145437 | 380 | 385 | 405 | 410 | 55.9 |
| K2-38 Sloped channel - (1m) | 145038 | 145438 | 385 | 390 | 410 | 415 | 56.4 |
| K2-39 Sloped channel - (1m) | 145039 | 145439 | 390 | 395 | 415 | 420 | 56.9 |
| K2-40 Sloped channel - (1m)1 | 145040 | 145440 | 395 | 400 | 420 | 425 | 57.4 |
| K2-040 Neutral channel - (1m)1 | 145049 | 145449 | 400 | 400 | 425 | 425 | 57.4 |
| K2-0403 Neutral channel - (0.5m)1 | 145050 | 145450 | 400 | 400 | 425 | 425 | 34.9 |
| K2-902 In-line pit (0.5m) | 141819 | 141820 | - | - | 843 | 843 | 30.8 |
| Type 902 In-line plastic rubbish basket | 13999 | 13999 | - | - | - | - | 0.5 |
Accessories
| Accessories | Part No. | Overall Depth (mm) |
Weight (kg) |
JPG |
|---|---|---|---|---|
| End cap for H200K/H200KS channels | 141795 | 130 | 0.4 | - |
| End cap for K200/KS200 channels | 96821 | 420 | 0.6 | |
| Debris strainer for 100mm knockout | 93488 | - | 0.1 | |
| Installation device for K200/KS200 channels | 97478 | - | 1.8 | - |
| Grate removal tool | 01318 | - | 0.1 | - |
Installation files
| System | Nominal wheel load |
Pavers pavers to edge |
Concrete haunch to top |
||
|---|---|---|---|---|---|
| K200 (Gal rail) | 2,670kg | |
|
|
|
| K200 (Gal rail) | 8,000kg | |
|
|
|
| KS200 (S/S rail) | 2,670kg | |
|
|
|
| KS200 (S/S rail) | 8,000kg | |
|
|
|
| H200K (Gal rail) | 2,670kg | |
|
|
|
| H200K (Gal rail) | 8,000kg | |
|
|
|
| H200KS (S/S rail) | 2,670kg | |
|
|
|
| H200KS (S/S rail) | 8,000kg | |
|
|
|
Need advice in specifying Brickslot?
ACO offers project specific services designed to make specification, ordering and installation easy.
The services deal with each project’s unique, hydraulic, structural, maintenance and spacial requirements. The service is fully documented and is offered free of charge and obligation.
Related brands:
Transport infrastructure drainage solutions
ACO also offers a dedicated range of drainage solutions for Australia’s diverse transport infrastructure including airports, roads and highways, railways, bridges and tunnels, seaports and container terminals.
For more info, click here.
Underground stormwater tanks
Once trench drains have collected water, it can be detained, infiltrated or stored for reuse with ACO StormBrixx®, a unique and patented plastic geocellular stormwater management system designed for all construction environments.
For more info, click here.
Stainless steel drains
Customisable drainage products to be installed in both stormwater and wastewater applications in buildings. Manufactured in stainless steel, these products are the drainage channels for residential, retail and commercial processing plants.
For more info, click here.
DIY Residential outdoor drainage
A range of building products specifically designed for the residential builder and DIY enthusiast. Offering the same quality and design excellence as ACO’s commercial products, but are designed to meet the demands and budget of home owners.
For more info, click here.
