Australian made

SlabDrain – Shallow trench drains

Shallow depth trench drain system, available in 100mm, 200mm and 300mm internal widths for both general purpose and heavy duty applications. Grates are locked with easy to use boltless mechanisms.

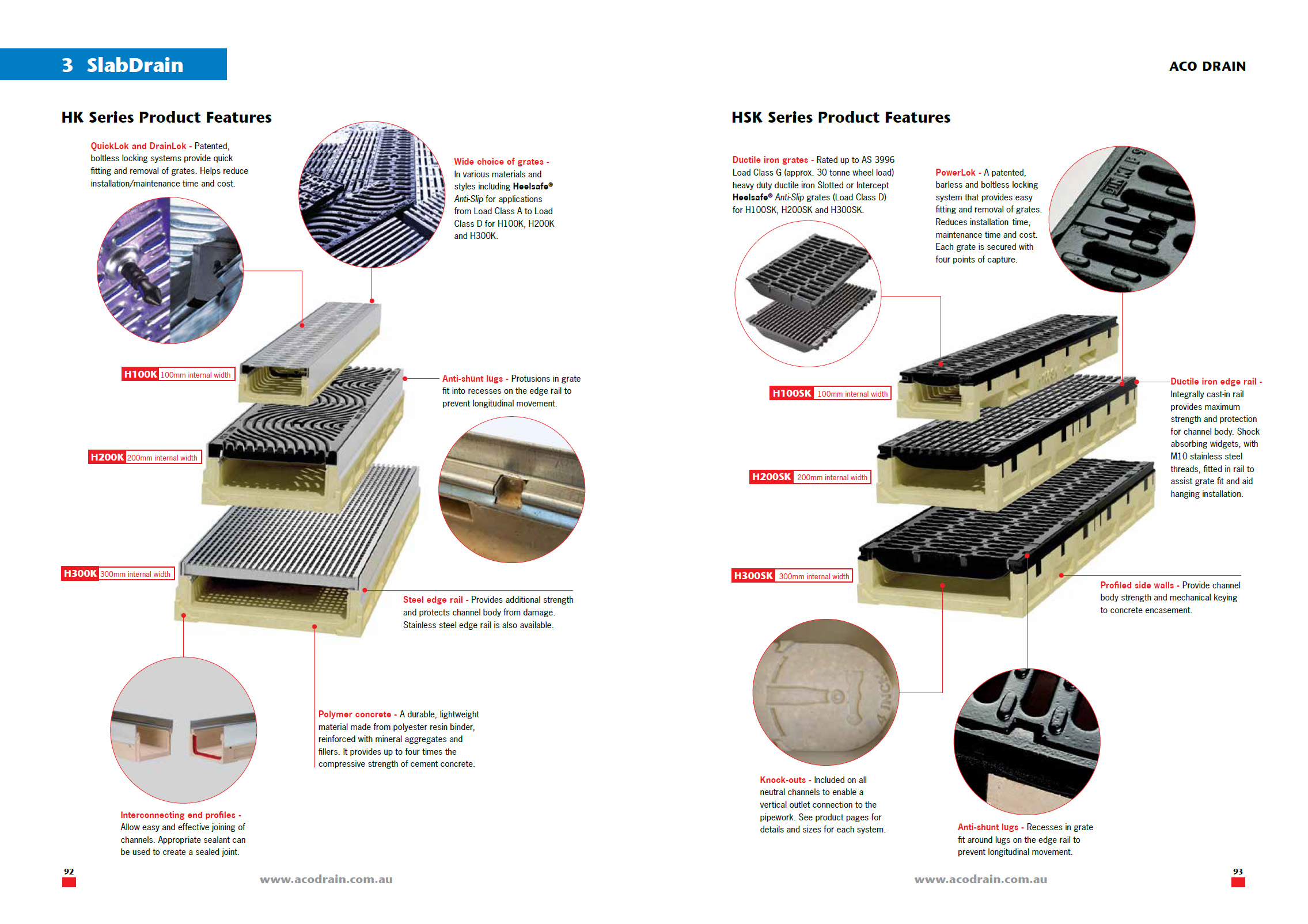

Slabdrain Features
1Wide choice of grates
2Integrally cast-in galvanised steel edge rail on HK system
3Knock-outs
4Polymer concrete
5Interlocking end profiles
6Two choices of grates
7Ductile iron edge rail
8PowerLok - HSK series
9Polymer concrete
10Interlocking end profiles

Summary of Grates
Heelsafe® Anti-Slip range Product Name Available widths Compliance

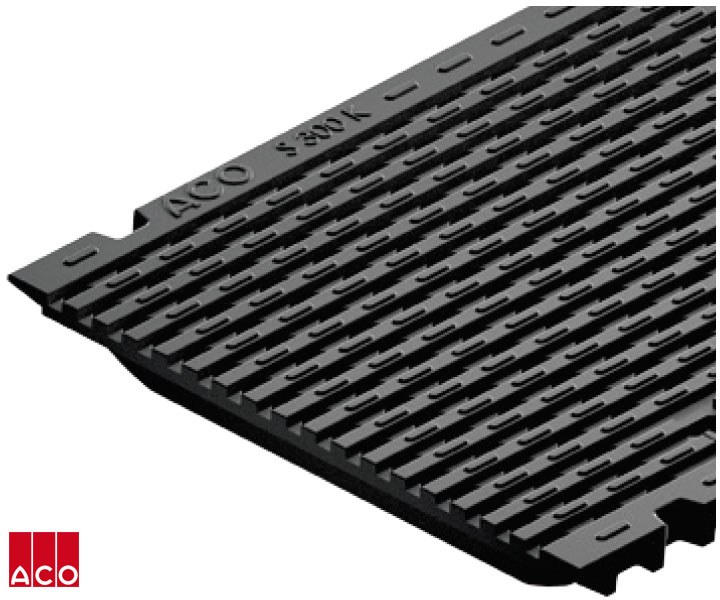

Iron Intercept grates Iron Intercept HK Series
100mm
200mm
300mm
HSK Series
100mm
200mm
300mm
• Slip rated to AS 4586: P3 wet pendulum, R10/R101 oil-wet inclining platform test
• Narrow 7mm slot for heel safety
• Load rated to Class D & G (AS 3996)

Galvanised Intercept grate Iron Galvanised Intercept 100mm
200mm
300mm
• Slip rated to AS 4586: P3 wet pendulum, R10/R101 oil-wet inclining platform test
• Narrow 7mm slot for heel safety
• Load rated to Class D (AS 3996)

Stainless 5 Star grates Stainless 5 Star 100mm
200mm
300mm
• Slip rated to AS 4586: P4 wet pendulum, C/C1 wet-barefoot, R11/R111 oil-wet inclining platform test
• Narrow 6mm slot for heel safety
• Load rated to Class B (AS 3996)

Stainless Splitwire grate Stainless Splitwire 100mm
200mm
300mm
• Slip rated to AS 4586: P5 wet pendulum, C/C1 wet-barefoot, R11/R111 oil-wet inclining platform test
• Maximum 6mm slot width for heel safety
• Load rated to Class B (AS 3996)

Stainless Twinwire grate Stainless Twinwire 100mm
200mm
300mm
• Slip rated to AS 4586: P5 wet pendulum, C/C1 wet-barefoot, R12/R121 oil-wet inclining platform test
• Maximum 6mm slot width for heel safety
• Load rated to Class B (AS 3996)

Stainless Wedgewire grate Stainless Wedgewire 100mm
200mm
300mm
• Slip rated to AS 4586: P3 wet pendulum, C/B1 wet-barefoot, R10/R101 oil-wet inclining platform test
• Narrow 6mm slot for heel safety
• Load rated to Class B (AS 3996)

Plastic slotted grate Plastic Slotted 100mm
• Slip rated to AS 4586: P5 wet pendulum, C/C1 wet-barefoot, R12/R131 oil-wet inclining platform test
• Narrow 8mm slot for heel safety
• Load rated to Class D (AS 3996)

Plastic Intercept grate Plastic Intercept 100mm
• Slip rated to AS 4586: P4 wet pendulum, C/B1 wet-barefoot, R9/R101 oil-wet inclining platform test
• 9mm slot for heel safety
• Load rated to Class A (AS 3996)

Galvnised Longitudinal grate Galvanised Longitudinal 100mm
• Slip rated to AS 4586: P3 wet pendulum and R10/R121 oil-wet inclining platform test
• Narrow 8mm slot for heel safety
• Load rated to Class B (AS 3996)

Iron Wave grate Iron Wave 100mm
200mm
300mm
• Slip rated to AS 4586: P4 wet pendulum, R10 oil-wet inclining platform test
• Narrow 7mm slot for heel safety
• Load rated to Class D (AS 3996)



1 Test direction (perpendicular/parallel) relative to the grate’s length

Larger Inlet grates Product Name Available widths Compliance
larger inlet grate steel slotted Steel Slotted HK Series
100mm
HSK Series
• Alternate slots making a lazy S pattern
• Wide slotted openings
• Load rated to Class A & D (AS 3996)

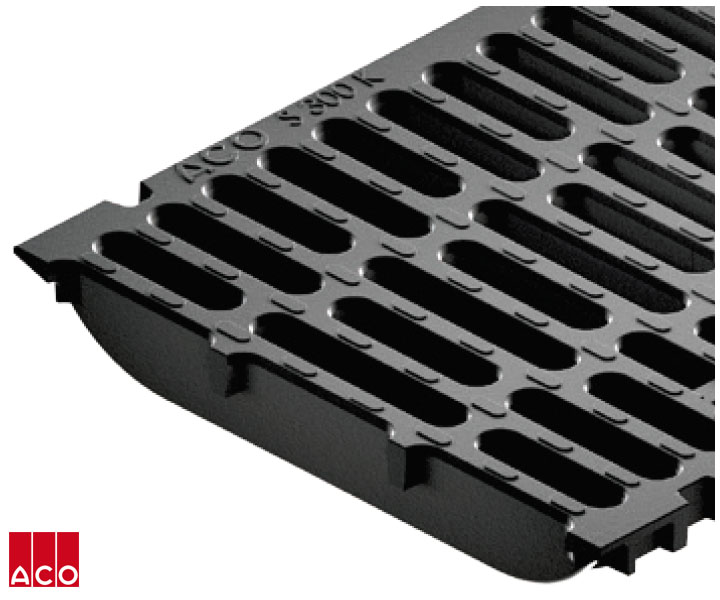

larger inlet grate iron sloted Iron Slotted 100mm
200mm
300mm
100mm
200mm
300mm
• Alternate slots making a lazy S pattern
• Wide slotted openings
• Load rated to Class D & G (AS 3996)

larger inlet grate steel mesh Steel Mesh 100mm
200mm
300mm
• Constant mesh design
• Large rectangular openings
• Load rated to Class D (AS 3996)

larger inlet grate galvanised transverse Steel Transverse 200mm
300mm
• Traditional bar grate design
• Large rectangular openings
• Load rated to Class B (AS 3996)


System Layout

SlabDrain Systems Layout



SlabDrain system layout

SlabDrain H100K - (HK series – Gal/SS Steel edge)

Grates

LOAD CLASS A – AS 3996 – 10kN – approximate wheel load 330kg

K100 / KS100 / H100K / H100KS Grates
(to suit 100mm channels)
Length
(mm)
Part
No.
 wheelchair compliant heel safe bicycle wheel safe pedestrian safe Spec
Info
Check
Water
Intake
Plastic Intercept Heelsafe® Anti-Slip
grate k100 plastic intercept
click to enlarge
Type 494D
Black polypropylene
500 142459 Yes Yes Yes Yes pdf water intake
Type 495D
Grey polypropylene
500 142460 Yes Yes Yes Yes pdf water intake
Steel Slotted
grate k100 steel slotted
click to enlarge
Type 420D
Galvanised
1000 12610 Yes Yes Yes cross pdf water intake
Type 421D
Galvanised
500 12611 Yes Yes Yes cross pdf water intake
Type 450D
Grade 304 stainless
1000 12640 Yes Yes Yes cross pdf water intake
Type 452D
Grade 304 stainless
500 12641 Yes Yes Yes cross pdf water intake

LOAD CLASS B – AS 3996 – 80kN – approximate wheel load 2,670kg

K100 / KS100 / H100K / H100KS Grates
(to suit 100mm channels)
Length
(mm)
Part
No.
 wheelchair compliant heel safe bicycle wheel safe pedestrian safe Spec
Info
Check
Water
Intake
Stainless Wedgewire Heelsafe® Anti-Slip
grate k100 stainless wedgewire
click to enlarge
Type 447D
Grade 304 stainless
1000 142215 Yes Yes Yes Yes pdf water intake
Type 448D
Grade 304 stainless
500 142216 Yes Yes Yes Yes pdf water intake
Stainless 5 Star Heelsafe® Anti-Slip
grate k100 stainless 5 star
click to enlarge
Type 443D
Grade 304 stainless
1000 142217 Yes Yes Yes Yes pdf water intake
Type 444D
Grade 304 stainless
500 142218 Yes Yes Yes Yes pdf water intake
Stainless Twinwire Heelsafe® Anti-Slip
grate k100 stainless twinwire
click to enlarge
Type 441D
Grade 304 stainless
1000 142556 Yes Yes Yes Yes pdf water intake
Type 442D
Grade 304 stainless
500 142557 Yes Yes Yes Yes pdf water intake
Stainless Splitwire Heelsafe® Anti-Slip
grate k100 stainless splitwire
click to enlarge
Type 439D
Grade 304 stainless
1000 142569 Yes Yes Yes Yes pdf water intake
Type 440D
Grade 304 stainless
500 142570 Yes Yes Yes Yes pdf water intake
Galvanised Longitudinal Heelsafe® Anti-Slip
grate k100 galvanised longitudinal
click to enlarge
Type 438D
Galvanised
1000 132555 Yes Yes Yes Yes pdf water intake
Type 437D
Galvanised
500 132550 Yes Yes Yes Yes pdf water intake

LOAD CLASS D – AS 3996 – 240kN – approximate wheel load 8,000kg

K100 / KS100 / H100K / H100KS Grates
(to suit 100mm channels)
Length
(mm)
Part
No.
 wheelchair compliant heel safe bicycle wheel safe pedestrian safe Spec
Info
Check
Water
Intake
Plastic Slotted Heelsafe® Anti-Slip

click to enlarge
Type 492D
Black polyamide
500 132720 Yes Yes Yes Yes pdf water intake
Steel Slotted

click to enlarge
Type 425D
Galvanised
1000 12614 Yes Yes Yes cross pdf water intake
Type 426D
Galvanised
500 12615 Yes Yes Yes cross pdf water intake
Type 455D
Grade 304 stainless
1000 12644 Yes Yes Yes cross pdf water intake
Type 457D
Grade 304 stainless
500 12645 Yes Yes Yes cross pdf water intake
Iron Wave Heelsafe® Anti-Slip

click to enlarge
Type 480D
Ductile iron
500 142461 Yes Yes Yes Yes pdf water intake

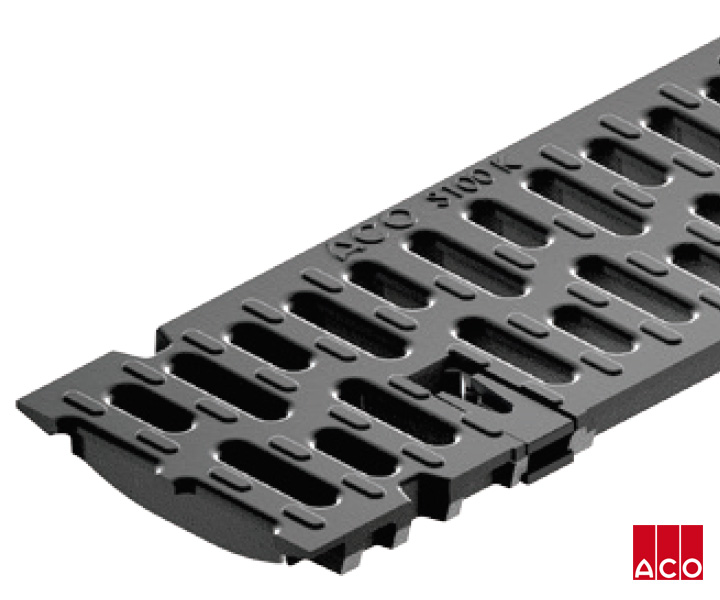

Iron Slotted

click to enlarge
Type 460D
Ductile iron
500 12670 Yes cross Yes cross pdf water intake

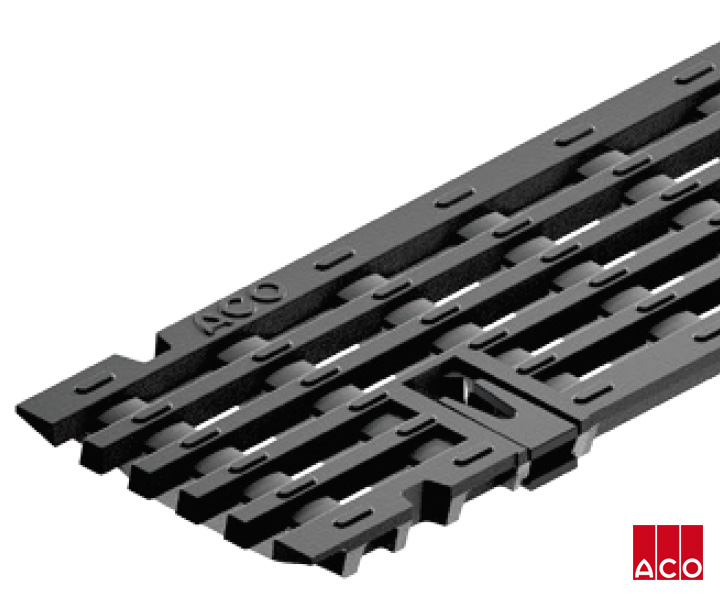

Iron Intercept Heelsafe® Anti-Slip

click to enlarge
Type 476D
Ductile iron
500 142171 Yes Yes Yes Yes pdf water intake
Iron Galvanised Intercept Heelsafe® Anti-Slip

click to enlarge
Type 475D
Galvanised iron
500 142172 Yes Yes Yes Yes pdf water intake
Steel Mesh

click to enlarge
Type 405Q
Galvanised
1000 142401 cross cross Yes cross pdf water intake
Type 406Q
Galvanised
500 142402 cross cross Yes cross pdf water intake
Type 430Q
Grade 304 stainless
1000 142403 cross cross Yes cross pdf water intake
Type 431Q
Grade 304 stainless
500 142404 cross cross Yes cross pdf water intake

Channels

PDF Download H100K Spec Info

Channels Part No.
Galv
Part No.
S/S
Invert Depth
(mm)
Overall Depth
(mm)
Weight
(kg)
H100K-60 Neutral channel (1m) 141803 141804 45 60 7.6
H100K-80 Neutral channel (1m) 141785 141786 65 80 9.0
H100K-100 Neutral channel (1m) 141787 141788 85 100 12.5

Accessories
Channels Part No. Overall Depth
(mm)
Weight
(kg)
H100K-60 End cap 141805 60 0.1
H100K-80 End cap 141793 79 0.5
H100K-100 End cap 141794 100 0.6
Debris Strainer for 100mm drill-out 93488 - 0.1
Grate removal tool 01318 - 0.1

SlabDrain H200K - (HK series – Gal/SS Steel edge)

Grates

LOAD CLASS B – AS 3996 – 80kN – approximate wheel load 2,670kg

K200 / KS200 / H200K / H200KS Grates
(to suit 200mm channels)
Length
(mm)
Part
No.
 wheelchair compliant heel safe bicycle wheel safe pedestrian safe Spec
Info
Check
Water
Intake
Stainless Wedgewire Heelsafe® Anti-Slip

click to enlarge
Type 647D
Grade 304 stainless
1000 142219 Yes Yes Yes Yes pdf water intake
Type 648D
Grade 304 stainless
500 142220 Yes Yes Yes Yes pdf water intake
Stainless 5 Star Heelsafe® Anti-Slip

click to enlarge
Type 643D
Grade 304 stainless
1000 142221 Yes Yes Yes Yes pdf water intake
Type 644D
Grade 304 stainless
500 142222 Yes Yes Yes Yes pdf water intake
Stainless Twinwire Heelsafe® Anti-Slip

click to enlarge
Type 641D
Grade 304 stainless
1000 142558 Yes Yes Yes Yes pdf water intake
Type 642D
Grade 304 stainless
500 142559 Yes Yes Yes Yes pdf water intake
Stainless Splitwire Heelsafe® Anti-Slip

click to enlarge
Type 639D
Grade 304 stainless
1000 142571 Yes Yes Yes Yes pdf water intake
Type 640D
Grade 304 stainless
500 142572 Yes Yes Yes Yes pdf water intake
Galvanised Transverse

click to enlarge
Type 607Q
Galvanised
1000 142411 cross cross Yes cross pdf water intake
Type 608Q
Galvanised
500 142412 cross cross Yes cross pdf water intake

LOAD CLASS D – AS 3996 – 240kN – approximate wheel load 8,000kg

K200 / KS200 / H200K / H200KS Grates
(to suit 200mm channels)
Length
(mm)
Part
No.
 wheelchair compliant heel safe bicycle wheel safe pedestrian safe Spec
Info
Check
Water
Intake
Iron Wave Heelsafe® Anti-Slip

click to enlarge
Type 680D
Ductile iron
500 142462 Yes Yes Yes Yes pdf water intake

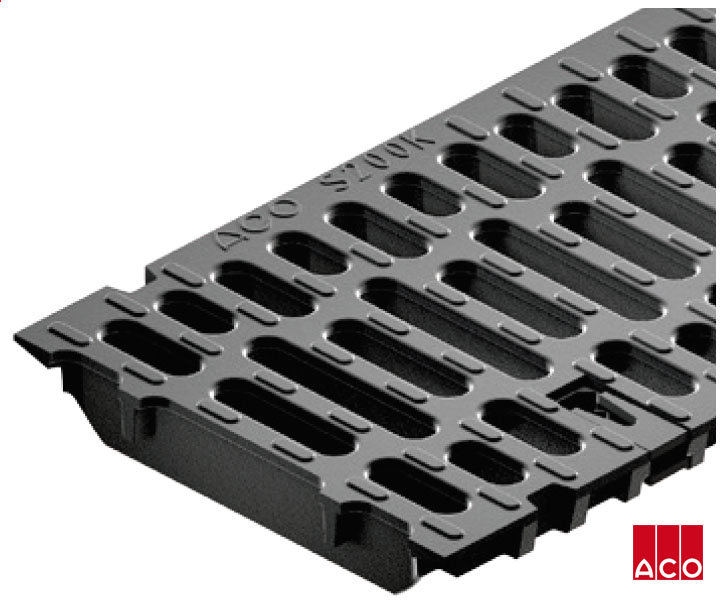

Iron Slotted

click to enlarge
Type 660D
Ductile iron
500 142177 Yes cross Yes cross pdf water intake

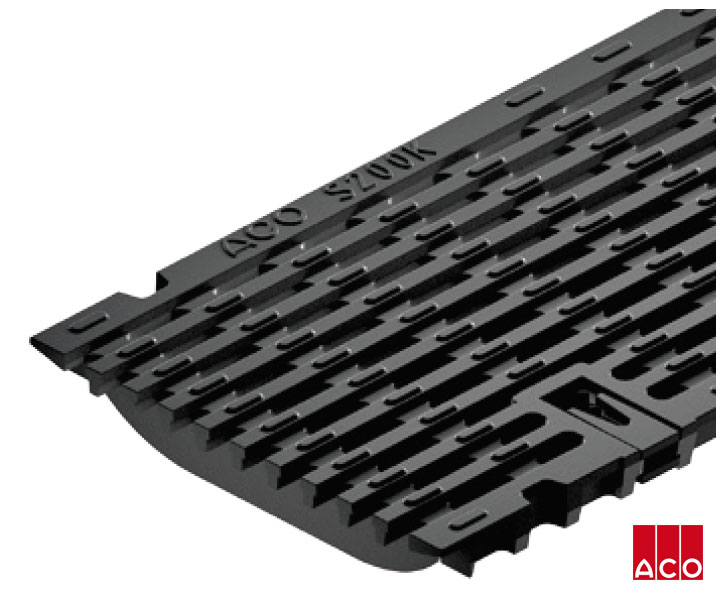

Iron Intercept Heelsafe® Anti-Slip

click to enlarge
Type 676D
Ductile iron
500 142173 Yes Yes Yes Yes pdf water intake
Iron Galvanised Intercept Heelsafe® Anti-Slip

click to enlarge
Type 675D
Galvanised iron
500 142174 Yes Yes Yes Yes pdf water intake
Steel Mesh

click to enlarge
Type 605Q
Galvanised
1000 142405 cross cross Yes cross pdf water intake
Type 606Q
Galvanised
500 142406 cross cross Yes cross pdf water intake
Type 630Q
Grade 304 stainless
1000 142407 cross cross Yes cross pdf water intake
Type 631Q
Grade 304 stainless
500 142408 cross cross Yes cross pdf water intake

Channels

PDF Download H200K Spec Info

Channels Part No.
Galv
Part No.
S/S
Invert Depth
(mm)
Overall Depth
(mm)
Weight
(kg)
H200K Neutral channel (1m) 141789 141790 100 130 27.2

Accessories
Channels Part No. Overall Depth
(mm)
Weight
(kg)
H200K End cap 141795 130 1.0
H200K Debris Strainer for 100mm drill-out 93488 - 0.1
H200K Grate removal tool 01318 - 0.1

SlabDrain H300K - (HK series – Gal/SS Steel edge)

Grates

LOAD CLASS B – AS 3996 – 80kN – approximate wheel load 2,670kg

K300 / KS300 / H300K / H300KS Grates
(to suit 300mm channels)
Length
(mm)
Part
No.
 wheelchair compliant heel safe bicycle wheel safe pedestrian safe Spec
Info
Check
Water
Intake
Stainless Wedgewire Heelsafe® Anti-Slip

click to enlarge
Type 847D
Grade 304 stainless
1000 142223 Yes Yes Yes Yes pdf water intake
Type 848D
Grade 304 stainless
500 142224 Yes Yes Yes Yes pdf water intake
Stainless 5 Star Heelsafe® Anti-Slip

click to enlarge
Type 843D
Grade 304 stainless
1000 142225 Yes Yes Yes Yes pdf water intake
Type 844D
Grade 304 stainless
500 142226 Yes Yes Yes Yes pdf water intake
Stainless Twinwire Heelsafe® Anti-Slip

click to enlarge
Type 841D
Grade 304 stainless
1000 142560 Yes Yes Yes Yes pdf water intake
Type 842D
Grade 304 stainless
500 142561 Yes Yes Yes Yes pdf water intake
Stainless Splitwire Heelsafe® Anti-Slip

click to enlarge
Type 839D
Grade 304 stainless
1000 142573 Yes Yes Yes Yes pdf water intake
Type 840D
Grade 304 stainless
500 142574 Yes Yes Yes Yes pdf water intake
Galvanised Transverse

click to enlarge
Type 807Q
Galvanised
1000 142413 cross cross Yes cross pdf water intake
Type 808Q
Galvanised
500 142414 cross cross Yes cross pdf water intake

LOAD CLASS D – AS 3996 – 240kN – approximate wheel load 8,000kg

K300 / KS300 / H300K / H300KS Grates
(to suit 300mm channels)
Length
(mm)
Part
No.
 wheelchair compliant heel safe bicycle wheel safe pedestrian safe Spec
Info
Check
Water
Intake
Iron Wave Heelsafe® Anti-Slip

click to enlarge
Type 880D
Ductile iron
500 142463 Yes Yes Yes Yes pdf water intake
Iron Slotted

click to enlarge
Type 860D
Ductile iron
500 13870 Yes cross Yes cross pdf water intake
Iron Intercept Heelsafe® Anti-Slip

click to enlarge
Type 876D
Ductile iron
500 142175 Yes Yes Yes Yes pdf water intake
Iron Galvanised Intercept Heelsafe® Anti-Slip

click to enlarge
Type 875D
Galvanised iron
500 142176 Yes Yes Yes Yes pdf water intake
Steel Mesh

click to enlarge
Type 805Q
Galvanised
500 142409 cross cross Yes cross pdf water intake
Type 830Q
Grade 304 stainless
500 142410 cross cross Yes cross pdf water intake

Channels

PDF Download H300K Spec Info

Channels Part No.
Galv
Part No.
S/S
Invert Depth
(mm)
Overall Depth
(mm)
Weight
(kg)
H300K Neutral channel (1m) 141791 141792 100 130 33.7

Accessories
Channels Part No. Overall Depth
(mm)
Weight
(kg)
H300K End cap 141796 130 1.4
H300K Grate removal tool 01318 - 0.1

SlabDrain H100SK (HSK series - Iron edge)

Grates
S100K / H100SK Grates
(to suit 100mm channels)
Length
(mm)
Part
No.
 wheelchair compliant heel safe bicycle wheel safe pedestrian safe Spec
Info
Check
Water
Intake
LOAD CLASS G – AS 3996 – 900kN – approximate wheel load 30,000kg
Iron Intercept Heelsafe® Anti-Slip

click to enlarge
Ductile iron 500 141299 Yes Yes Yes Yes pdf water intake
Iron Slotted

click to enlarge
Ductile iron 500 96082 Yes cross Yes cross pdf water intake

Channels

PDF Download H100SK Spec Info

Channels Part No. Invert Depth
(mm)
Overall Depth
(mm)
Weight
(kg)
H100SK Neutral channel (1m) 93412 75 100 20.4

Accessories
Channels Part No. Overall Depth
(mm)
Weight
(kg)
H100SK End cap 97334 100 0.5
H100SK Debris Strainer for 100mm drill-out 93488 - 0.1
H100SK Grate removal tool 01318 - 0.1
H100SK PowerLok safety clip 10443 - -

SlabDrain H200SK (HSK series - Iron edge)

Grates
S200K / H200SK Grates
(to suit 200mm channels)
Length
(mm)
Part
No.
 wheelchair compliant heel safe bicycle wheel safe pedestrian safe Spec
Info
Check
Water
Intake
LOAD CLASS D – AS 3996 – 240kN – approximate wheel load 8,000kg
Iron Intercept Heelsafe® Anti-Slip

click to enlarge
Ductile iron 500 142685 Yes Yes Yes Yes pdf water intake
LOAD CLASS G – AS 3996 – 900kN – approximate wheel load 30,000kg
Iron Slotted

click to enlarge
Ductile iron 500 71976 cross cross Yes cross pdf water intake

Channels

PDF Download H200SK Spec Info

Channels Part No. Invert Depth
(mm)
Overall Depth
(mm)
Weight
(kg)
H200SK Neutral channel (1m) 63456 100 130 27.6

Accessories
Channels Part No. Overall Depth
(mm)
Weight
(kg)
H200SK End cap 93460 130 0.5
H200SK Debris Strainer for 100mm drill-out 93488 - 0.1
H200SK Grate removal tool 01318 - 0.1
H200SK PowerLok safety clip 10443 - -

SlabDrain H300SK (HSK series - Iron edge)

Grates
S300K / H300SK Grates
(to suit 300mm channels)
Length
(mm)
Part
No.
 wheelchair compliant heel safe bicycle wheel safe pedestrian safe Spec
Info
Check
Water
Intake
LOAD CLASS D – AS 3996 – 240kN – approximate wheel load 8,000kg
Iron Intercept Heelsafe® Anti-Slip

click to enlarge
Ductile iron 500 142686 Yes Yes Yes Yes pdf water intake
LOAD CLASS G – AS 3996 – 900kN – approximate wheel load 30,000kg
Iron Slotted

click to enlarge
Ductile iron 500 02445 cross cross Yes cross pdf water intake

Channels

PDF Download H300SK Spec Info

Channels Part No. Invert Depth
(mm)
Overall Depth
(mm)
Weight
(kg)
H300SK Neutral channel (1m) 63466 100 130 37.3

Accessories
Channels Part No. Overall Depth
(mm)
Weight
(kg)
H300SK End cap 93470 130 0.6
H300SK Grate removal tool 01318 - 0.1
H300SK PowerLok safety clip 10443 - -

Installation Files

SlabDrain HK - Steel edge

System AS 3996 Grass
haunch
to top
Pavers
pavers
to edge
Pavers
haunch
to top
Asphalt
sloped
haunch
Asphalt
haunch
to top
Concrete
haunch
to top
H100K Gal rail Class A-B PDF DWG PDF DWG PDF DWG PDF DWG
H100K Gal rail Class C-D PDF DWG PDF DWG PDF DWG PDF DWG PDF DWG
H200K Gal rail Class A-B PDF DWG PDF DWG PDF DWG PDF DWG
H200K Gal rail Class C-D PDF DWG PDF DWG PDF DWG PDF DWG PDF DWG
H300K Gal rail Class A-B PDF DWG PDF DWG PDF DWG PDF DWG
H300K Gal rail Class C-D PDF DWG PDF DWG PDF DWG PDF DWG PDF DWG
H100KS S/S rail Class A-B PDF DWG PDF DWG PDF DWG PDF DWG
H100KS S/S rail Class C-D PDF DWG PDF DWG PDF DWG PDF DWG PDF DWG
H200KS S/S rail Class A-B PDF DWG PDF DWG PDF DWG PDF DWG
H200KS S/S rail Class C-D PDF DWG PDF DWG PDF DWG PDF DWG PDF DWG
H300KS S/S rail Class A-B PDF DWG PDF DWG PDF DWG PDF DWG
H300KS S/S rail Class C-D PDF DWG PDF DWG PDF DWG PDF DWG PDF DWG



SlabDrain HSK – Iron edge

System AS 3996 Grass
haunch
to top
Pavers
pavers
to edge
Pavers
haunch
to top
Asphalt
sloped
haunch
Asphalt
haunch
to top
Concrete
haunch
to top
H100SK Iron rail Class C-D PDF DWG PDF DWG PDF DWG
H100SK Iron rail Class E-G PDF DWG PDF DWG PDF DWG PDF DWG PDF DWG
H200SK Iron rail Class C-D PDF DWG PDF DWG PDF DWG
H200SK Iron rail Class E-G PDF DWG PDF DWG PDF DWG PDF DWG PDF DWG
H300SK Iron rail Class C-D PDF DWG PDF DWG PDF DWG
H300SK Iron rail Class E-G PDF DWG PDF DWG PDF DWG PDF DWG PDF DWG

Need advice in specifying SlabDrain?

drain request formslabdrain technical supportACO offers project specific services designed to make specification, ordering and installation easy.

The services deal with each project’s unique, hydraulic, structural, maintenance and spacial requirements. The service is fully documented and is offered free of charge and obligation.

askACO now
Download brochure Design my drain runs

Related products:

Infrastructure

Transport infrastructure drainage solutions

ACO also offers a dedicated range of drainage solutions for Australia’s diverse transport infrastructure including airports, roads and highways, railways, bridges and tunnels, seaports and container terminals.
For more info, click here.

Stormbrixx

Underground stormwater tanks

Once trench drains have collected water, it can be detained, infiltrated or stored for reuse with ACO StormBrixx®, a unique and patented plastic geocellular stormwater management system designed for all construction environments.
For more info, click here.

Stainless Steel Drains

Stainless steel drains

Customisable drainage products to be installed in both stormwater and wastewater applications in buildings. Manufactured in stainless steel, these products are the drainage channels for residential, retail and commercial processing plants.
For more info, click here.

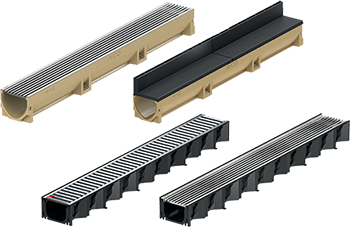

Residential Outdoor Drainage

DIY Residential outdoor drainage

A range of building products specifically designed for the residential builder and DIY enthusiast. Offering the same quality and design excellence as ACO’s commercial products, but are designed to meet the demands and budget of home owners.
For more info, click here.

Back To Top
