Midland Railway Square, WA

Railway Square is a new civic place linking the historic 20th Century Industrial Railway Workshop buildings with a new urban village. The area is a mix of old and new; residential and commercial buildings and open public spaces.

Project Design Brief

  • To provide a drainage system capable of collecting all the surface water runoff from a flat pavement
  • Provide a grate design which is aesthetically compatible with the historic industrial theme of the site

ACO's Solution

  • K200 trench drainage system with modular channels configured to produce a sloped run
  • Iron Wave Heelsaferegistration markAnti-Slip grates

Benefits

  • Sloped channels with 0.5% built-in fall allows for efficient drainage on flat pavements
  • Cast steel edge rails provides a visual restraining edge for the pavers
  • The grate design is in keeping with the industrial theme of the area

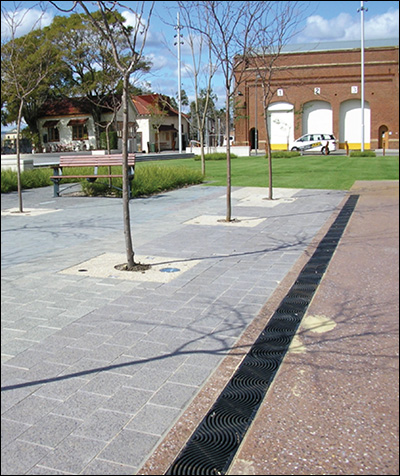

Midland Railway WA

Other ACO products used:

  •  Ductile iron access covers
  • Cable pits
